TX23D38VM0CAA: Product Information Product Specifications
Resolution:
800(RGB)×480, WVGA 104PPI
Brightness:
500 cd/m² (Typ.)
Contrast Ratio:
800 : 1 (Typ.) (TM)
Viewing Angle:
85/85/85/85(Typ.)(CR≥10)
Lamp Type:
3S7PWLED, 70K hours, With LED Driver
Signal Interface:
LVDS(1ch,6/8-bit),20pinsConnector
Panel Type:
a-Si TFT-LCD, LCM
Pixel Format:
RGB Vertical Stripe
Active Area:
195(W)×117(H) mm
Bezel Opening:
197.0(W)×119.0(H) mm
Outline size:
218(W)×135(H)×11.45(D) mm
Response Time:
25 (Typ.)(Tr+Td) ms
Work Mode:
IPS, Normally Black, Transmissive
Display Colors:
262K/16.7M60%NTSC
Signal Type:
LVDS(1ch,6/8-bit),20pinsConnector
Voltage Supply:
3.3V(Typ.)
TX23D38VM0CAA: Ordering instructions
Quality:
test ok before ship it
Overview
TX23D38VM0CAA : Product Information Product Specifications
Model | TX23D38VM0CAA |
Size | 9" |
Resolution | 800(RGB)×480, WVGA 104PPI |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Lamp Type | WLED |
Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Panel Type | a-Si TFT-LCD, LCM |

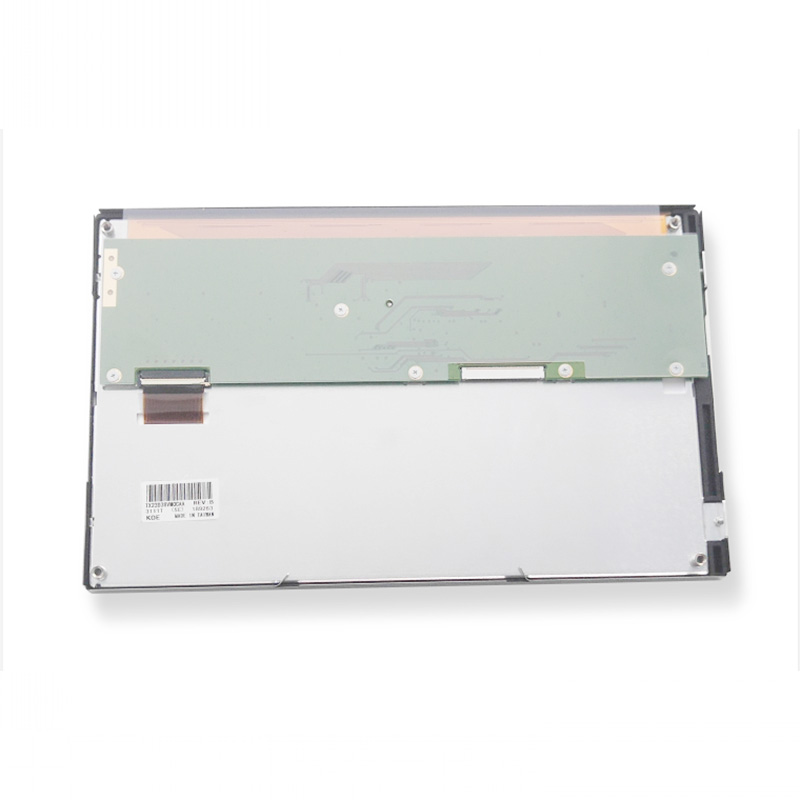

TX23D38VM0CAA : Product show pictures
