Applicable to:Medical display、Injection molding machine screen、navigation lcd、Automotive Display、projector lcd panel、industrial display、intelligent display、industrial lcd panels、monitor touch screen and so on
SX14Q001: Product Information Product Specifications
Resolution:
320(RGB)×240, QVGA 70PPI
Brightness:
150 cd/m² (Typ.)
Contrast Ratio:
40:1 (Typ.) (TM)
Viewing Angle:
BestViewon
Lamp Type:
1 pcs CCFL , 50K hours , Without Driver
Signal Interface:
ParallelData(1ch,8-bit),16pinsFPC
Panel Type:
CSTN-LCD, LCM
Pixel Format:
RGB Vertical Stripe
Active Area:
115.2(W)×86.4(H) mm
Bezel Opening:
122.0(W)×92.0(H) mm
Outline size:
167(W)×109(H)×9.2(D) mm
Best View on:
DisplayColors
Work Mode:
STN, Normally Black, Transmissive
Display Colors:
Frequency
Touchscreen:
1 pcs CCFL , 50K hours , Without Driver
Signal Type:
ParallelData(1ch,8-bit),16pinsFPC
Voltage Supply:
3.3V(Typ.)
SX14Q001: Ordering instructions
Quality:
test ok before ship it
Overview
SX14Q001 : Product Information Product Specifications
Model | SX14Q001 |
Size | 5.7" |
Resolution | 320×240, QVGA 70PPI |
Brightness | 150 cd/m² (Typ.) |
Contrast Ratio | 40:1 (Typ.) (TM) |
Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) |
Lamp Type | CCFL |
Signal Interface | Parallel Data (1ch, 8-bit) , 16 pins FPC |
Panel Type | STN-LCD, LCM |

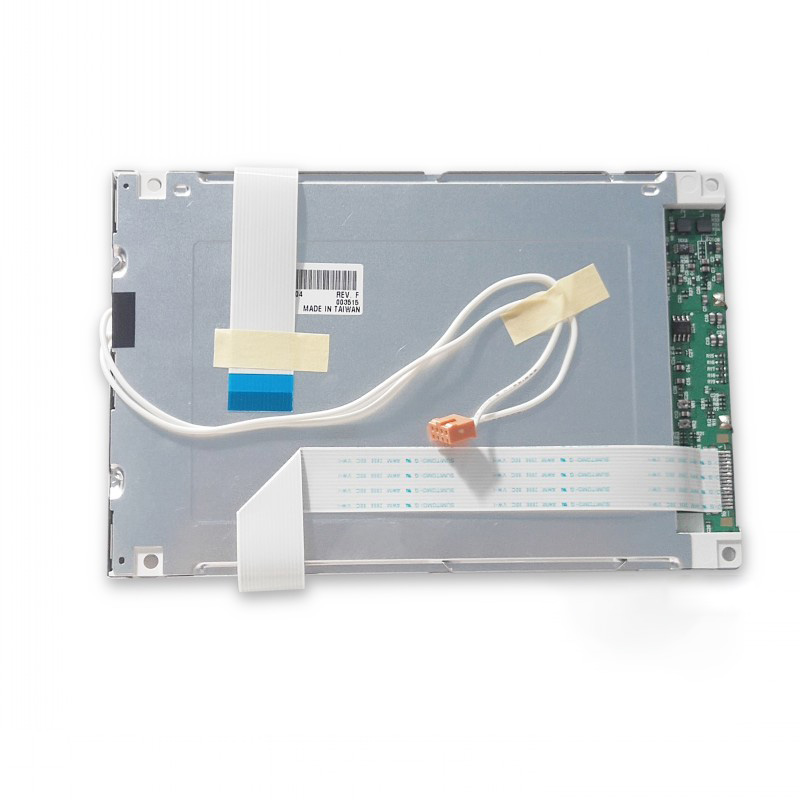

SX14Q001 : Product show pictures
