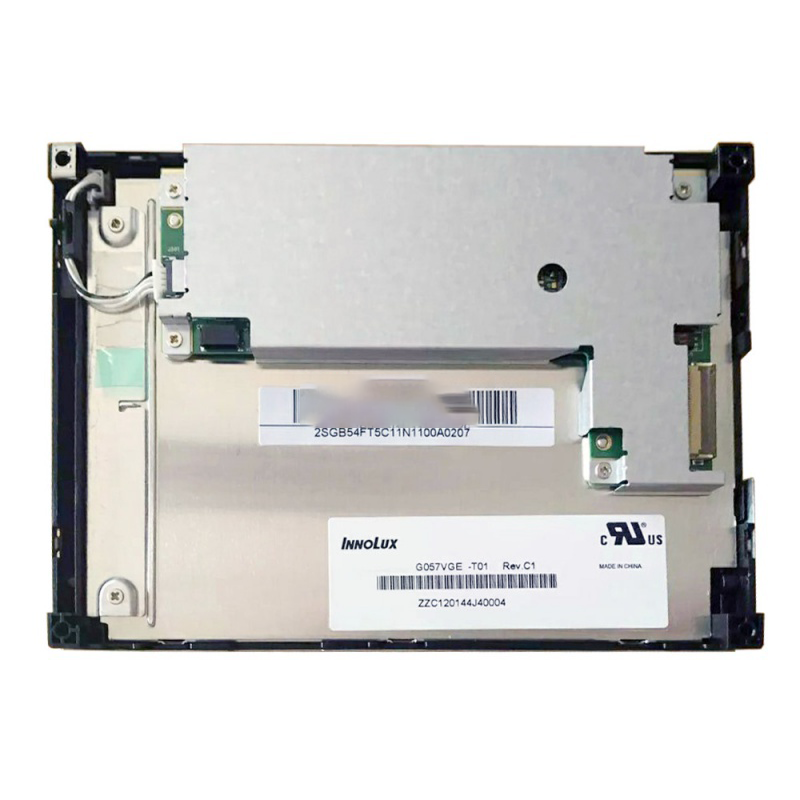

Name: G057VGE-T01 Innolux 5.7" a-Si TFT-LCD LCM 640(RGB)×480 VGA 141PPI
Brand: INNOLUX
Price: 90.0 USD

Home

Products

Manufacturer

Support

News

About Us

Products

Industrial display

Innolux

G057VGE-T01 Innolux 5.7" a-Si TFT-LCD LCM 640(RGB)×480 VGA 141PPI

Price: $95.00

$90.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Q&A Reviews

G057VGE-T01: Product Information Product Specifications

Model:

G057VGE-T01

Brand:

INNOLUX

Application:

Industrial

Size:

5.7"

Resolution:

640(RGB)×480, VGA 141PPI

Brightness:

450 cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Viewing Angle:

80/80/70/70(Typ.)(CR≥10)

Lamp Type:

WLED, 50K hours, With LED Driver

Signal Interface:

TTL(1ch,6-bit),33pinsConnector

Panel Type:

a-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) mm

Bezel Opening:

118.2(W)×89.4(H) mm

Outline size:

144(H)×104.6(V)×12.8(D) mm

Surface:

Antiglare(Haze25%)

Response Time:

Best View on:

Work Mode:

TN, Normally White, Transmissive

Display Colors:

262K54%NTSC

Weight:

155/170g(Typ./Max.)

Frequency:

60Hz

Touchscreen:

Without

Signal Type:

TTL(1ch,6-bit),33pinsConnector

Voltage Supply:

3.3V(Typ.)

G057VGE-T01: Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

0.500 KG

Overview

G057VGE-T01 Innolux 5.7" a-Si TFT-LCD LCM 640(RGB)×480 VGA 141PPI

Questions & Answers

Ask a Question >

All (8) Package (2) Express Delivery (2) Delivery Time (1) Payment (1) After Sale (2)

How many days does the United States need to receive the product?

In the United States, it is usually 5-7 days, except for remote areas.

How long is your after-sales service time?

Our after-sales time is mostly 6 months, which varies according to different products

What should we do if it gets damaged during transportation?

Please rest assured to make the purchase. If the product is damaged during transportation, we will cover all the shipping costs.

Do you cover the shipping cost for returns caused by quality issues?

The freight cost for quality issues will be borne by us.

When does the warranty period start?

The after-sales period begins from the second day after you receive the product.

Is the packaging safe? Is it prone to damage during transportation?

Our products are all protected by multiple layers of packaging to ensure safe transportation.

What payment methods do you website support?

Currently, we support PayPal payment.We will soon add more payment methods for support. Please stay tuned.

Hello, I would like to know how long it will take for the goods to be shipped after the purchase?

The goods will generally be dispatched within 3 days.

Customer Reviews

Write a Review >

Comprehensive Score

4 out of 5

1 Reviews

5 star

4 star

100%

3 star

2 star

1 star

Review this Product Order

Share your thoughts with other customers

Write a Review

H******i

Nov 18, 2024

(4/5)

Excellent quality, affordable price, worth recommending
